Description
LoRaWAN only: no GPS connection
This is the LoRaWAN only version of the RAK2287. It does not provide the GPS connection, so GPS based timing and location are not available on this module.

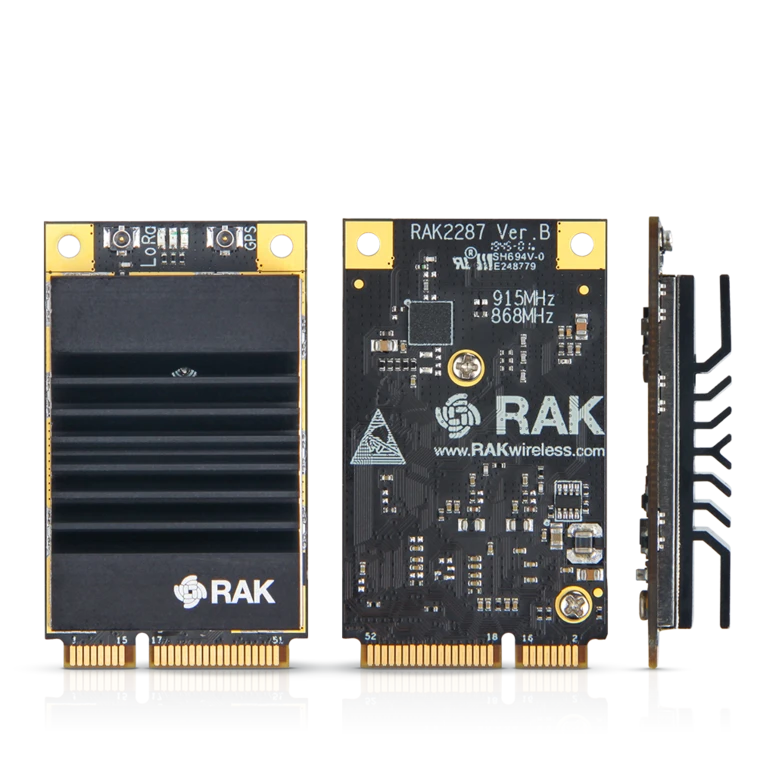

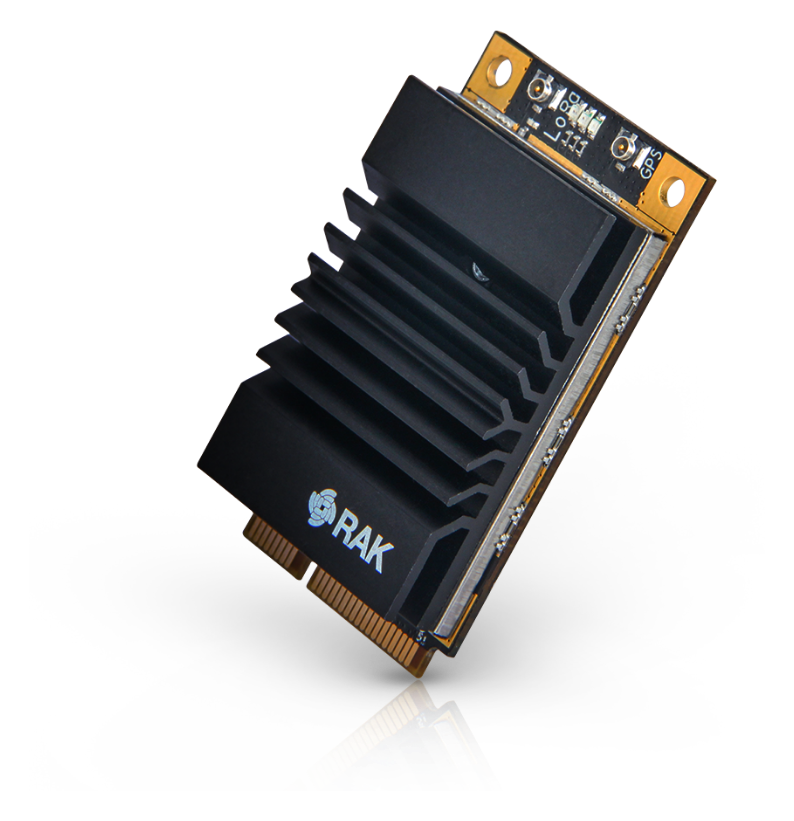

RAKwireless RAK2287 is a Semtech SX1302-based LoRaWAN concentrator module in a mini-PCIe form factor. 8 LoRa demodulators, full LoRaWAN 1.0.x / 1.1 support (Class A/B/C), available with SPI or USB host interface, and onboard GPS for nanosecond-class timestamping. Industrial -40°C to +85°C operating range; drop-in for Raspberry Pi gateway designs via the RAK2287 Pi HAT.
- Semtech SX1302 baseband — lower CPU load and improved sensitivity vs SX1301
- Mini-PCIe form factor for easy integration into gateway mainboards
- SPI or USB host interface variants
- US915 sub-band option (also AS923 / KR920 / IN865 / AU915 family compatible)
- Onboard GPS for class-B beaconing and precise timing
- Industrial temperature range -40°C to +85°C
About this listing
Available as Open Box (unused, opened packaging) and Certified Pre-Owned (fully tested, may show light use). Select your Region, Interface, and Condition to see availability.
