Description
This board requires a quality power supply capable of at least 5V/3A (15W) over USB-C, or a USB-C PD/QC adapter (9V/2A or 12V/2A). A 5V/1A or 5V/2A phone charger will not work and will cause boot failures or instability.
Wi-Fi & Bluetooth need an external antenna. Wireless on this board is routed through the U.FL connector at the rear of the board — without an antenna fitted, Wi-Fi and Bluetooth range is very limited. We stock a U.FL → SMA antenna adapter separately, and one is already included if you order the Heatsink and Case kit.
Wi-Fi is 2.4 GHz only. The onboard wireless connects to 2.4 GHz (802.11 b/g/n) networks only — it does not support the 5 GHz band. Make sure your router broadcasts a 2.4 GHz SSID.
These items do not come in retail packaging. Items are sent in protective anti-static bags.
Radxa Rock Pi 4B+ Heatsink Original price was: $12.99.$5.99Current price is: $5.99.
Radxa Rock Pi 4B+ Heatsink and Case$10.99
U.FL to SMA connector (10cm) Original price was: $2.99.$0.99Current price is: $0.99.
3A/5V USB-C Power Supply Original price was: $14.99.$5.99Current price is: $5.99.
Hexa-Core Performance
Rockchip RK3399 — big.LITTLE compute in a Pi-class form factor
Two high-clocked A72 cores tackle the heavy lifting while four efficient A53 cores keep everything else responsive — with a Mali GPU that drives 4K media, M.2 NVMe storage, dual display, and a full 40-pin GPIO header.
Technical Specifications

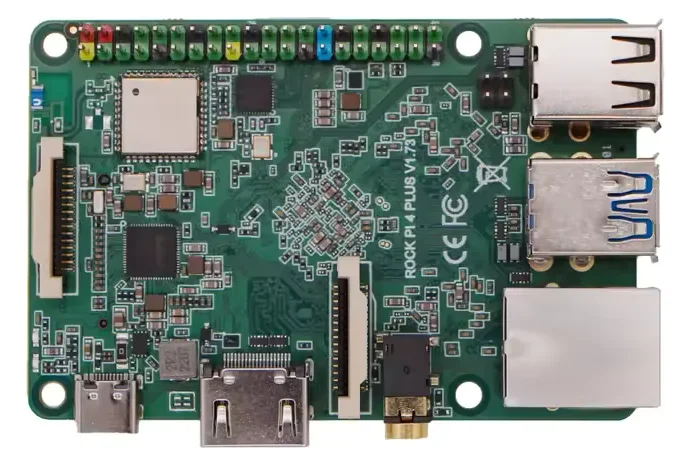

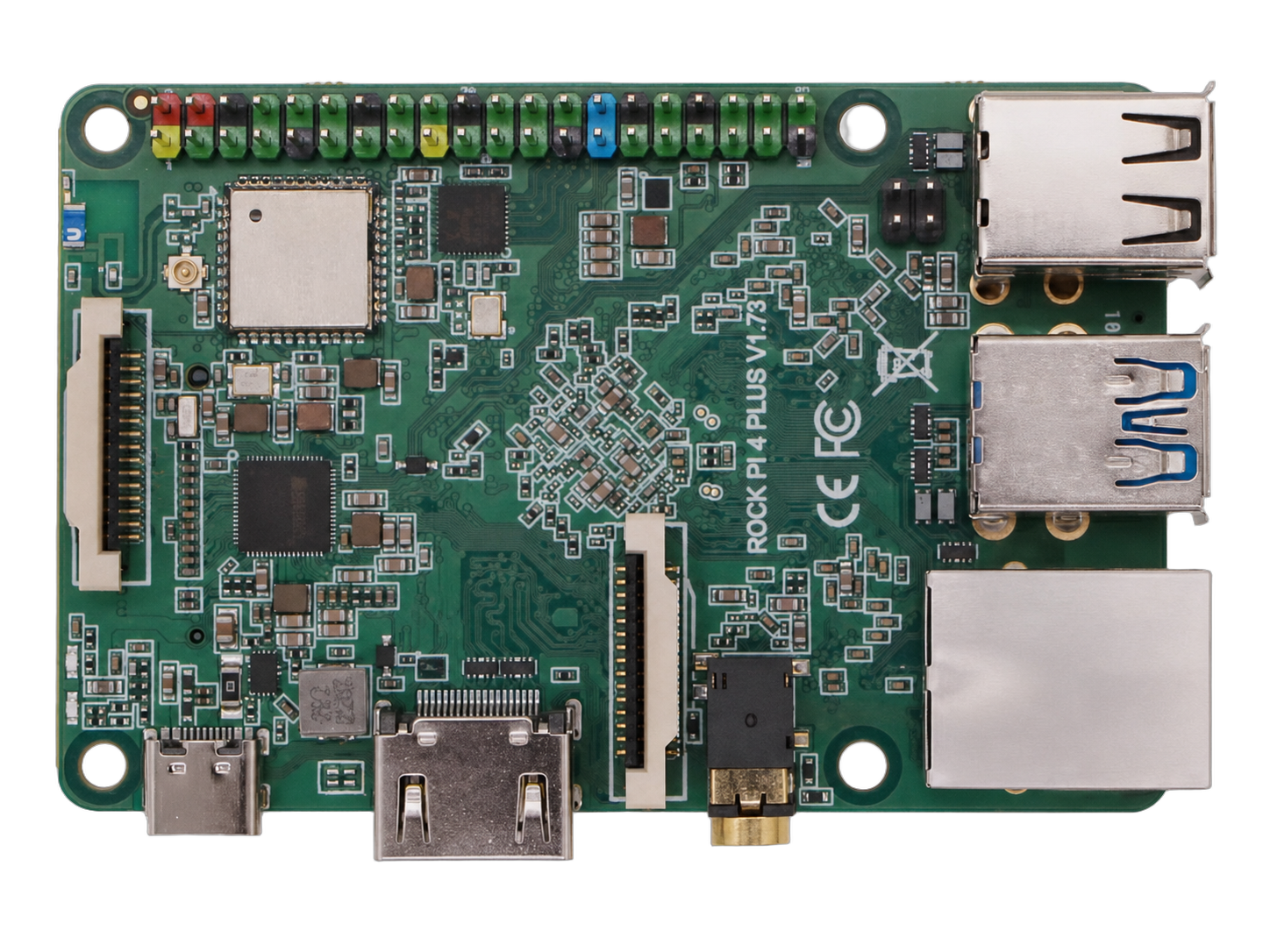

Full verified spec sheet for the Radxa ROCK Pi 4B+.
SoC
Rockchip RK3399 — 64-bit hexa-core
CPU
2× Arm Cortex-A72 @ 1.8 GHz + 4× Arm Cortex-A53 @ 1.4 GHz
GPU
Arm Mali T860MP4 — OpenGL ES 1.1/2.0/3.0/3.1/3.2, Vulkan 1.0, OpenCL 1.1/1.2, DirectX 11.1
Multimedia
H.265 / VP9 (HEVC) hardware decode up to 4Kp60 · H.264 hardware decode up to 1080p60
Memory
LPDDR4 — 2 GB or 4 GB
Storage
1× eMMC connector · 1× M.2 M-Key (4-lane PCIe 2.1, NVMe SSD) · 1× microSD card slot
Display
1× HDMI up to 4Kp60 · 1× 2-lane MIPI DSI
Camera
1× 2-lane MIPI CSI
Wireless
802.11 b/g/n Wi-Fi (2.4 GHz only) · Bluetooth 5.0 with BLE
Ethernet
1× Gigabit Ethernet — PoE support via optional HAT
USB
1× USB3 host · 1× USB3 OTG · 2× USB2 host
Audio
1× 4-ring 3.5 mm headphone jack · HD codec up to 24-bit / 96 kHz
GPIO
40-pin header — 2× UART · 2× SPI · 3× I²C · 1× PCM/I²S · 1× SPDIF · 2× PWM · 1× ADC · 6× GPIO · 2× 5 V DC in · 2× 3.3 V
Software
Debian Linux · Android
Power
USB-C PD 2.0 (9/12/15/20 V @ 2 A) · QC 2.0 · 6–24 V fixed on USB-C · 5 V via GPIO pins 2 & 4
Operating temp
0 – 50 °C (RK3399 throttles above 80 °C — add a heatsink for sustained loads)
Dimensions
85 × 56 mm
Compliance
FCC / CE
