Description

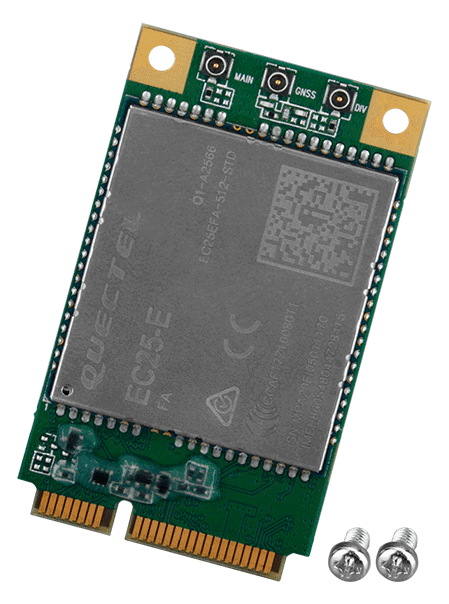

Quectel EC25 (Mini PCIe 4G LTE) is an LTE Cat 4 cellular modem in the standard Mini PCIe form factor, for adding reliable 4G connectivity to IoT/M2M gateways, routers, and single-board computers like the Raspberry Pi.
- LTE Cat 4: up to 150 Mbps downlink / 50 Mbps uplink
- LTE-FDD/TDD with fallback to UMTS/HSPA+ and GSM/GPRS/EDGE
- Connects via USB 2.0 over the Mini PCIe edge connector
- Multi-constellation GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS)
- Regional variants (EC25-A, EC25-E, EC25-AF, etc.) with Linux, Windows and Android drivers
